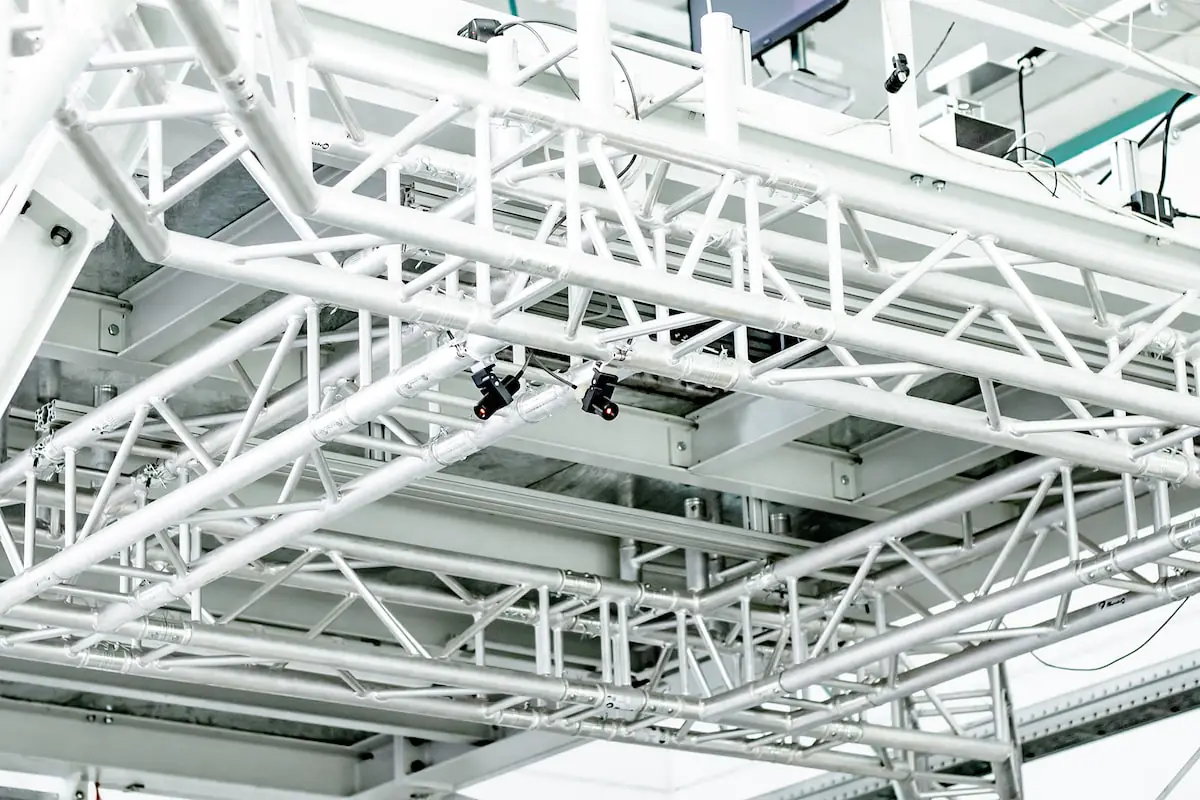

Industrial line laser
- Proven lasers for positioning for professional use
- Speed up production processes and reduce costs with a line laser
- In use worldwide in almost all countries and industry segments
- Dust-tight and robust perfect for almost any environment
- We will be happy to advise you on the possible applications of line lasers in your company
The line laser from SL Laser is part of the basic equipment for working with precise positioning, alongside the cross laser or cross line laser and the circle laser, so to speak. In addition to the worldwide distribution of laser projectors and measuring systems from SL Laser, positioning lasers are an important part of our portfolio.
For decades, industrial line lasers and cross lasers from SL Laser have been an indispensable part of production in trade and industry. A green line laser from SL Laser for positioning is a guarantee for extreme precision, greatest robustness and impressive range.
Our positioning lasers for machines
Positioning laser PL30-F green
- up to 50 mW
- Line, cross or dot
- Focusable
Positioning laser PL-ABPH600 green
- up to 100 mW
- Line, cross and other optics
- Focusable
PL-C1 green circular laser
- up to 50 mW
- Circle
Positioning laser PL30-F red
- up to 10 mW
- Line, cross and other optics
- Focusable
Positioning laser PL-ABPH600 red
- up to 200 mW
- Line, cross and other optics
- Focusable
PL-C1 red circular laser
- up to 50 mW
- Circle
System specifications
for industrial line lasers
Mechanics
Housing anodised aluminium, dimensions (mm) Ø 30 x 88.5mm, weight 300g incl. cable
Optics
Line or cross, homogeneous line
Optical properties green
Diode laser, diode power: 10 mW / 50 mW, wavelength 520nm (green), lifetime: > 20,000 h
Optical properties red
Diode laser, diode power: 10 mW, wavelength 635nm (red), service life: > 20,000 h
Laser class
Class 2M at 10 mW (Class 3R at 50 mW) EN 60825-1:2015-07, IEC60825-1, EN76-2, 21CFR 1040, CE
Testing and safety
Temperature range 0°C… +50°C, housing IP 65, shock load 4 g
Electrical data
Voltage 16-33 VDC (+)bn (-)bl (PE) gb/gn, power consumption 1 W, supply cable 5 m
Product and performance data
for the line lasers at SL Laser
These data are used as example data.
On request, our positioning lasers can be adapted to your needs.
| Laser colour | Power Diode | Output power | Focusable | Optics | Laser class |
|---|---|---|---|---|---|
| green | 10 mW | < 1 mW | yes | Line | 2M |
| green | 10 mW | < 1 mW | yes | Cross | 2M |
| green | 50 mW | < 5 mW | yes | Line | 3R |
| red | 10 mW | < 1 mW | yes | Line | 2M |
| red | 10 mW | < 1 mW | yes | Cross | 2M |
| Line generator for line length 10°, 15°, 30°, 45°, 60°, 90° | |||||
Do you have questions?
Get in touch – we’re here for you. Our customer service team is happy to provide personal advice and individual support.
Work faster and more precisely
with the industrial line laser from SL Laser

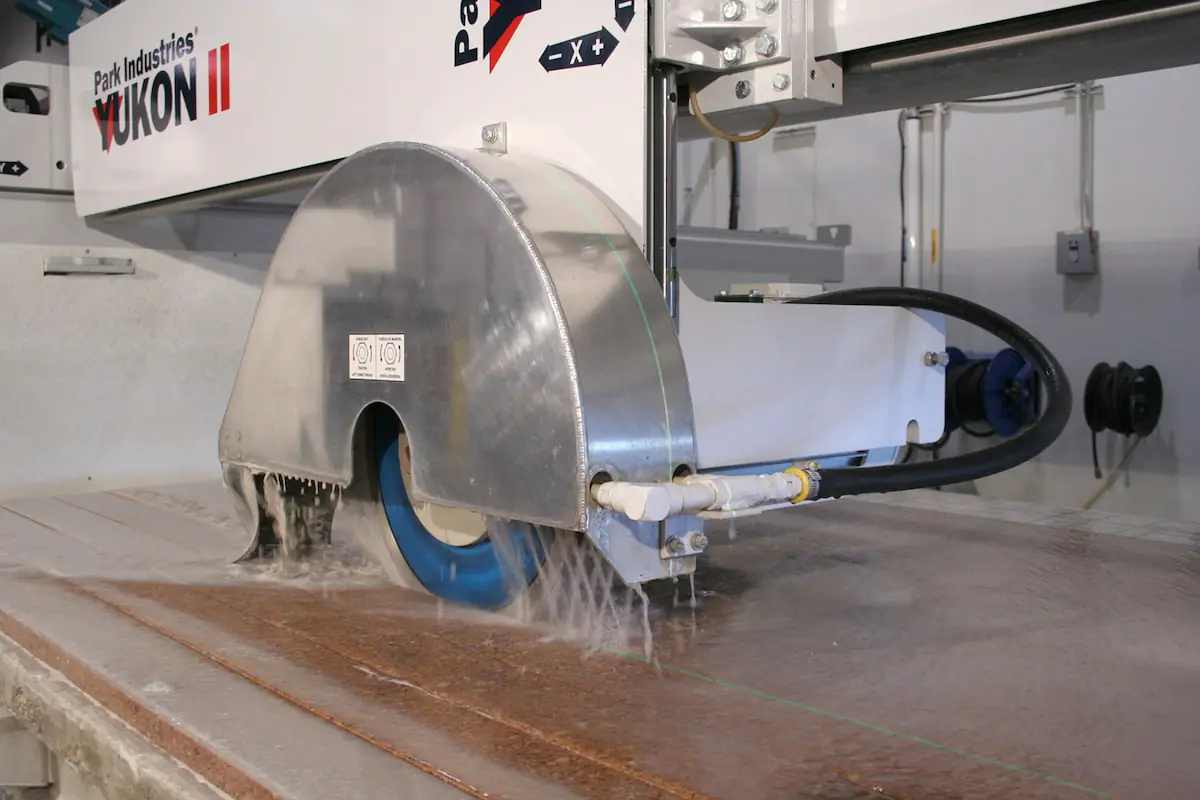

Whether for positioning tools or aligning components and workpieces, a professional laser or line laser speeds up and simplifies work processes in industrial operations and reduces the margin for error. With the line laser and cross laser from SL Laser, sawing work in the production of wooden components is just as precise as the display of cutting industrial laser lines in the textile industry. The same applies to the display of folded edges, for example.
Line lasers from SL Laser can be focused to compensate for different distances. Depending on your needs at SL Laser you can get the line lasers in different power levels for industrial applications. In general, the color green is advantageous for a positioning laser, such as the industrial line laser or cross laser, because it is better perceived by the human eye. However, environmental factors also play a role. Depending on the lighting and other conditions, the line laser in red may even perform better. We at SL Laser will be happy to advise you which color is better suited for your application.
We list the product and performance data for our line lasers and positioning lasers as examples below. However, these data refer to our standard products. Many of our customers order custom-made line lasers to meet special requirements in their companies. If you are interested in a laser specifically tailored to your needs, please contact us at any time. Our experts will be happy to advise you on the green line lasers and specifically address your needs in direct contact. Due to frequent demand, our special designs for lasers for positioning are also within an economically interesting range and industrial laser line.
The line lasers or other positioning lasers for industrial applications are available directly from us ex works or from one of our sales partners worldwide. For all further information as well as a well-founded consultation about the products please use the contact form or our hotline. We are looking forward to getting in contact with you.
Supported by an optical arrangement of mirrors and lenses the laser beam in red or green can be formed to a line but also to other patterns by diffraction or refraction. Since the laser beam thereby represents nothing more than an “extended source” (laser standard EN 60825-1), a line laser can still be classified in laser classes one or two even with a higher optical power.
Depending on the design of the line laser, the respective length of the line can be determined, for example, by the angle of its positioning. In this case, the length is also determined by the radiation power, just like the range in the distance. By regulating the optical arrangement, professional line lasers can be focused if required. As a rule, the brightness and detectability of the line decreases towards the end of the extension in length.
Now that the production of laser beams has had little mystery behind it for decades, the use of line lasers, cross lasers and other positioning lasers has expanded from professional applications to the DIY market. Do-it-yourselfers use line lasers, cross lasers or cross line lasers or even circle positioning lasers to assemble furniture, wallpaper or perform other renovation work. Much like in the woodworking industry, line lasers are also used to saw straight or line up drill holes precisely. In most cases, lasers for home use are powered by rechargeable batteries so that the power cord does not interfere with the work. This means that this type of line laser can also be used on the move and often comes with a tripod for better alignment.
The differences between professional devices for industry and those for DIY are mainly in the precision, durability or robustness and in the range of a precise line display. Together with the workmanship this naturally has an impact on the price that must be estimated for such a laser device. In order to solve the problem of the exact alignment of the line lasers and cross lasers, so-called self-leveling line lasers are also sold in the upper price range for the private user. Small pendulum constructions ensure an accuracy in the range of +/- 4°.
A professional line laser
from SL Laser
A line laser, cross laser or positioning laser from SL Laser for industry and trade meets the highest requirements for precision, range and robustness. Our lasers are in use in literally thousands of industrial and craft companies worldwide. If you would like to find out more about using such a laser in your company, please contact us.
We will be happy to advise you about the possibilities and the use in the specific application area in your company. Furthermore, we are also happy to adapt our positioning lasers to unusual requirements.
