Projection systems in the concrete and construction industry
The use of projection systems from SL Laser in the construction industry and for precast concrete parts has been established for decades. They depict precise and true-to-scale outlines, patterns and shapes on surfaces all over the world. Using CAD data as a basis, they create virtual, visible templates. ProDirector 7 simplifies and improves processes by visualizing even complex 3D information. But SL Laser offers even more. In the construction industry in particular, the ProCollector L measurement system can be used to effortlessly create an error-free measurement for many production and assembly processes. It then serves as a projection template.
Advantages for the construction industry and precast concrete production
The ProDirector 7 calibrates itself automatically for precise projections on the table, even in a networked system.
The projectors enable parallel work steps and carry out the final inspection / quality assurance at the same time.
The ProCollector L measures and projects CAD drawings for easy calibration – even on curved surfaces.
On request: Customizable software for integration into control consoles and guidance systems for the practice.
Suitable products for the concrete and construction industries
Laser projector ProDirector 7 LR

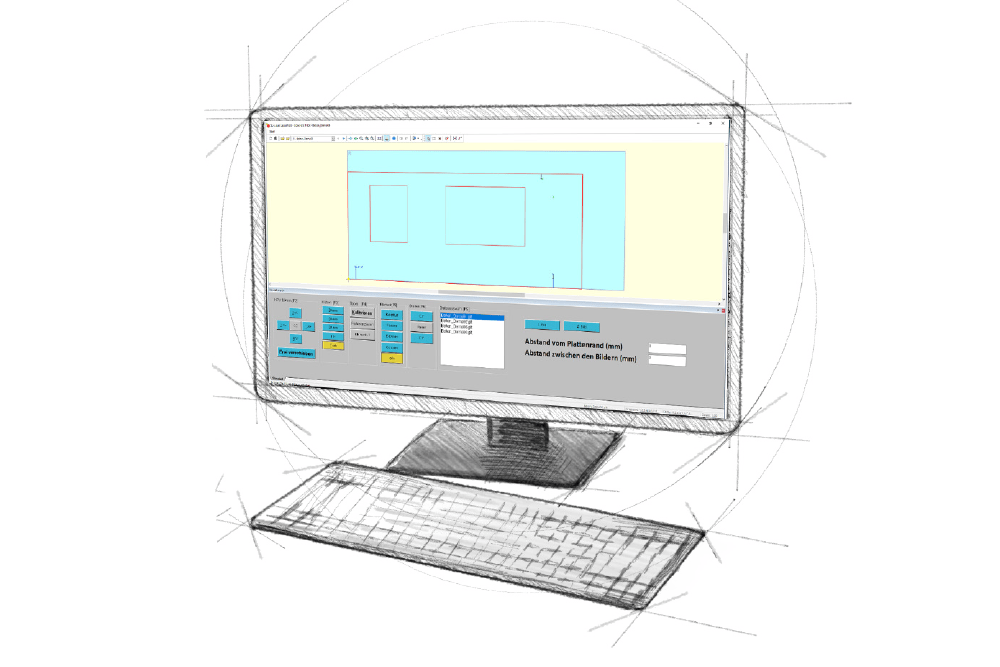

ConcretePilot
With ConcretePilot, you can project your precast concrete parts directly onto the work table—quickly, precisely, and intuitively. The software supports multiple laser projectors simultaneously and can be customized to suit your production processes.

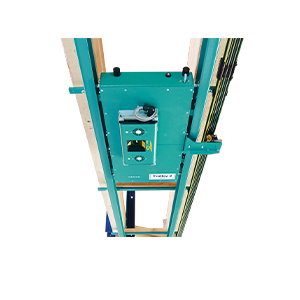

Individual solutions
Individual solutions from SL Laser are tailored precisely to your production conditions. Whether for rail systems, manual workstations, or large halls, our engineers develop customized concepts for maximum precision and efficiency.
Typical areas of application for our laser systems in these sectors

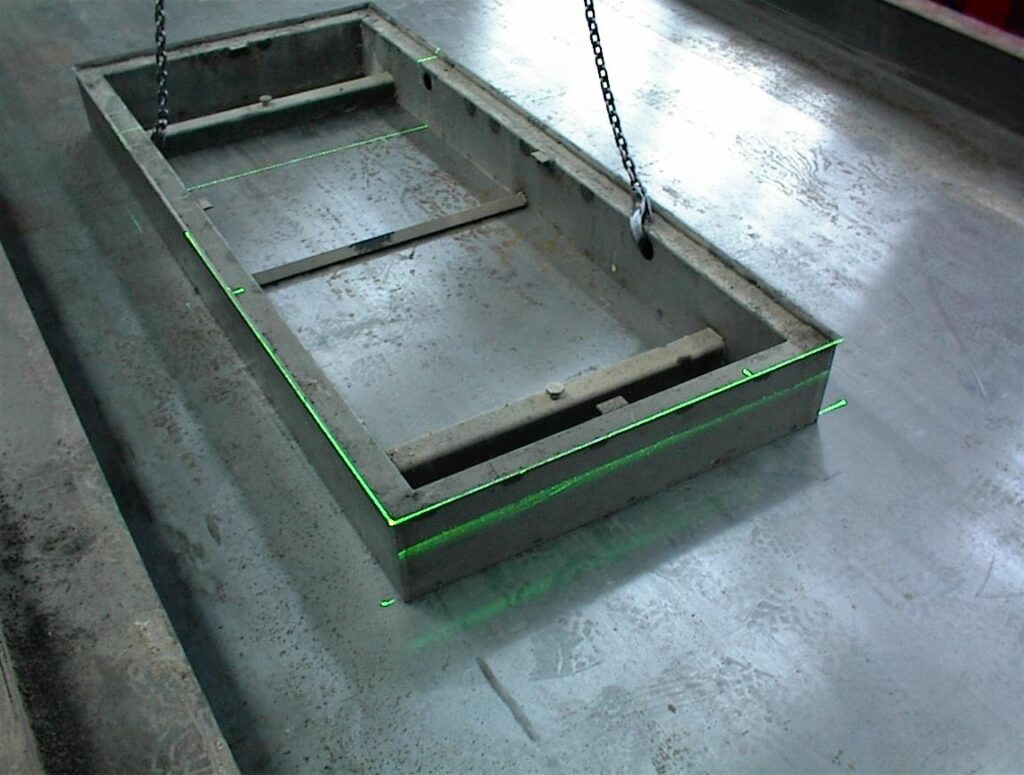

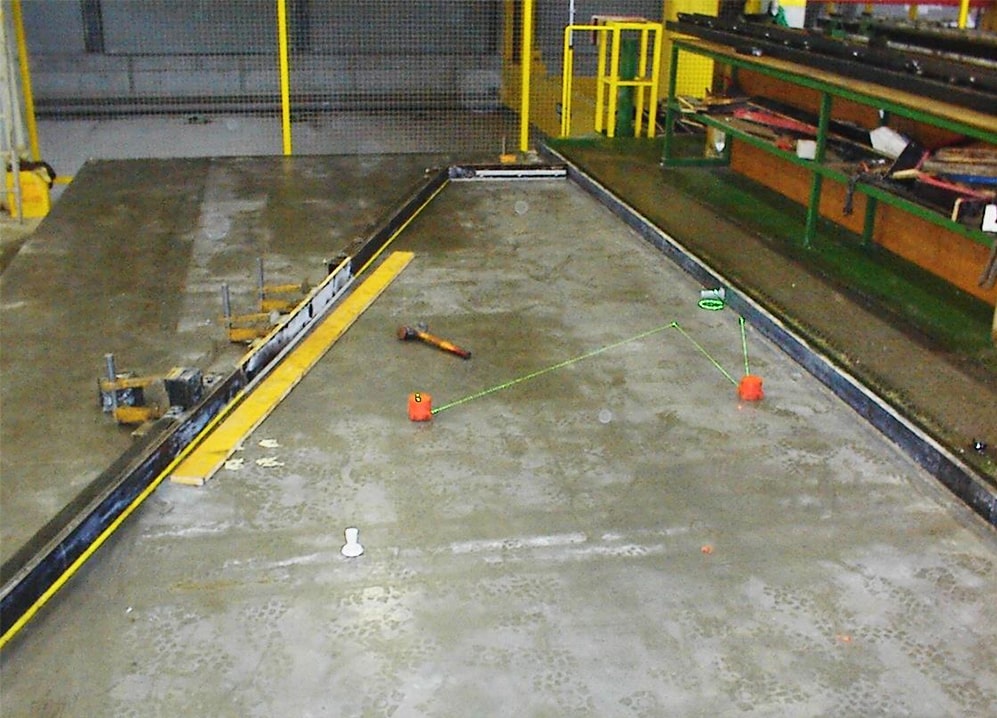

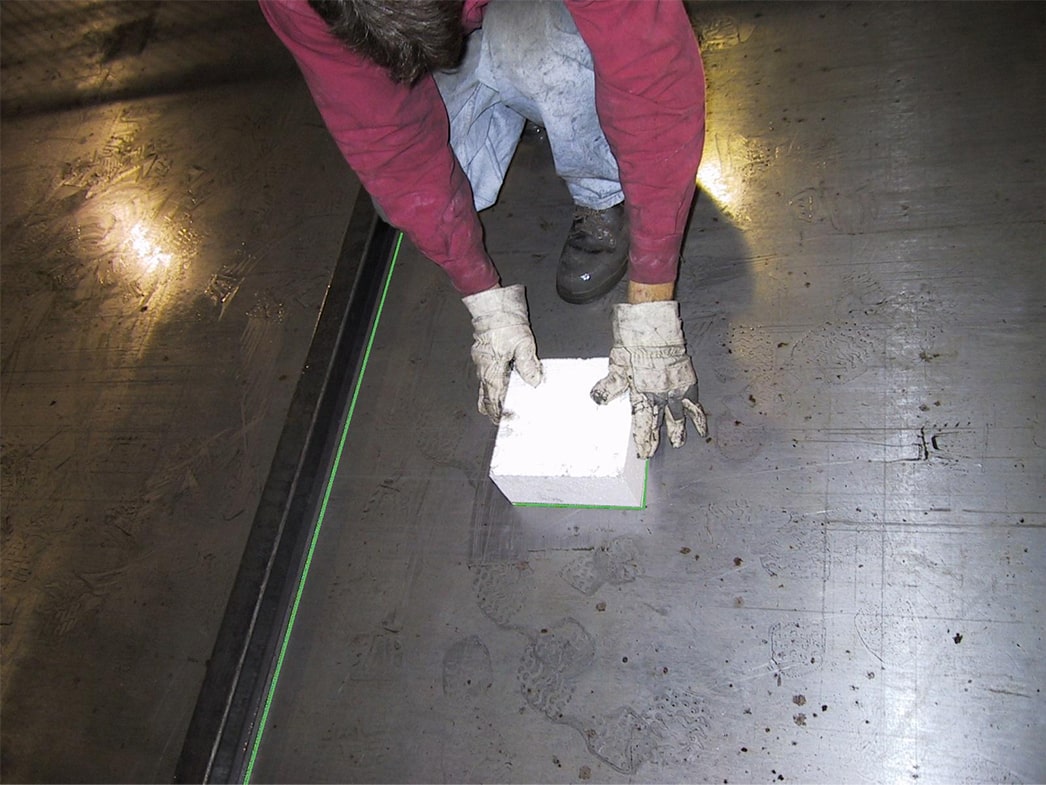

The ProDirector 7 and the ProCollector L are used for various processes in the construction industry and in the production of precast concrete parts. The ProDirector 7 calibrates itself automatically and projects lines and points onto the table at a ratio of 1:1. This enables the positioning of frames, reinforcements and formwork. If you use long table applications, a coordinated network system of several projectors works with exact calculation of height and angles. The ProCollector L collects data with just two measuring points per vertical surface and transfers it to the DXF format for CAD programs.
Further information on use in the concrete and construction industries
